Thoughts on Flash Photography
Derek Smith • 18 January 2023
White Angel
Photo By: Derek Smith

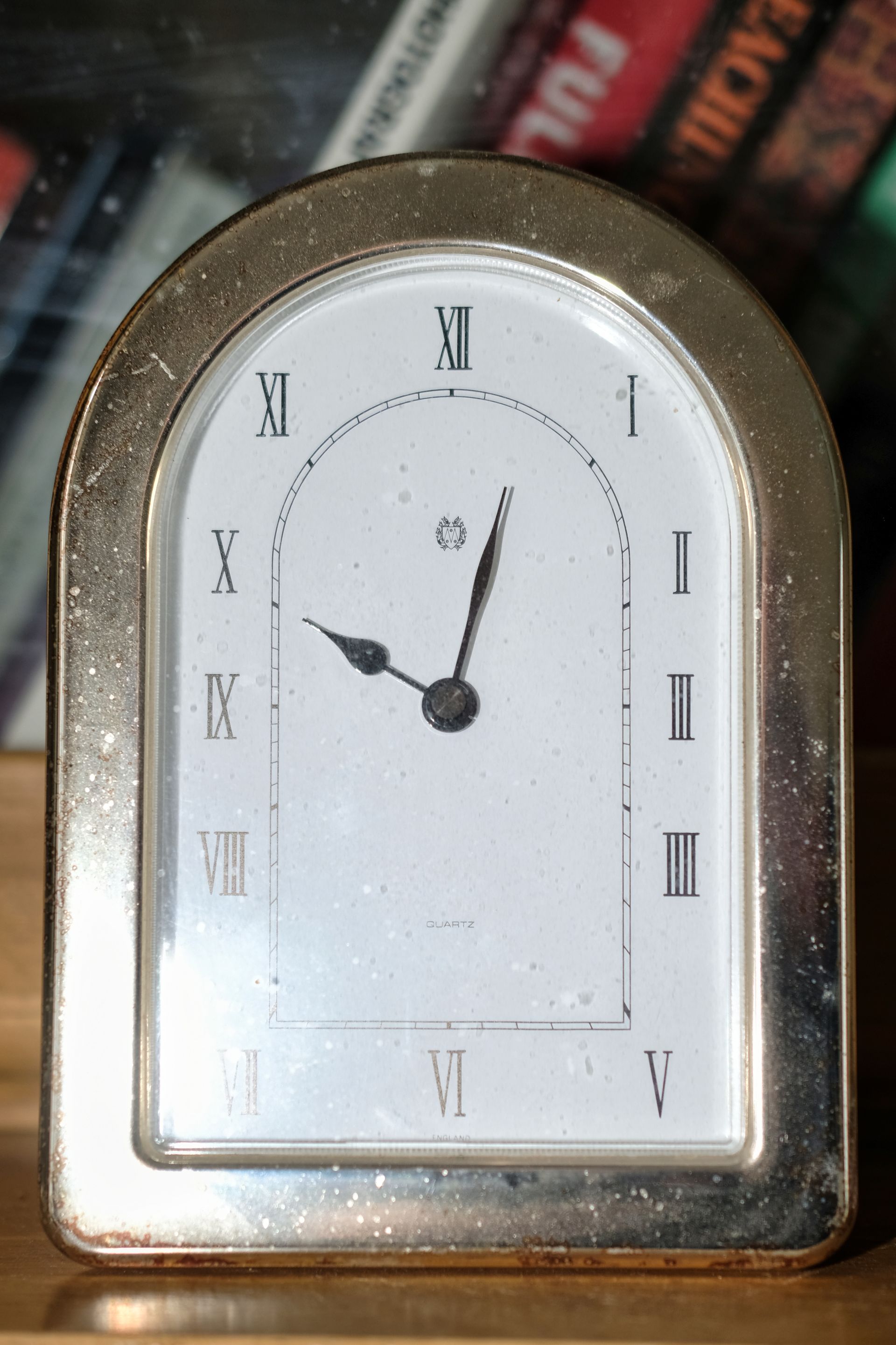

Clock 1
Photo By: Derek Smith

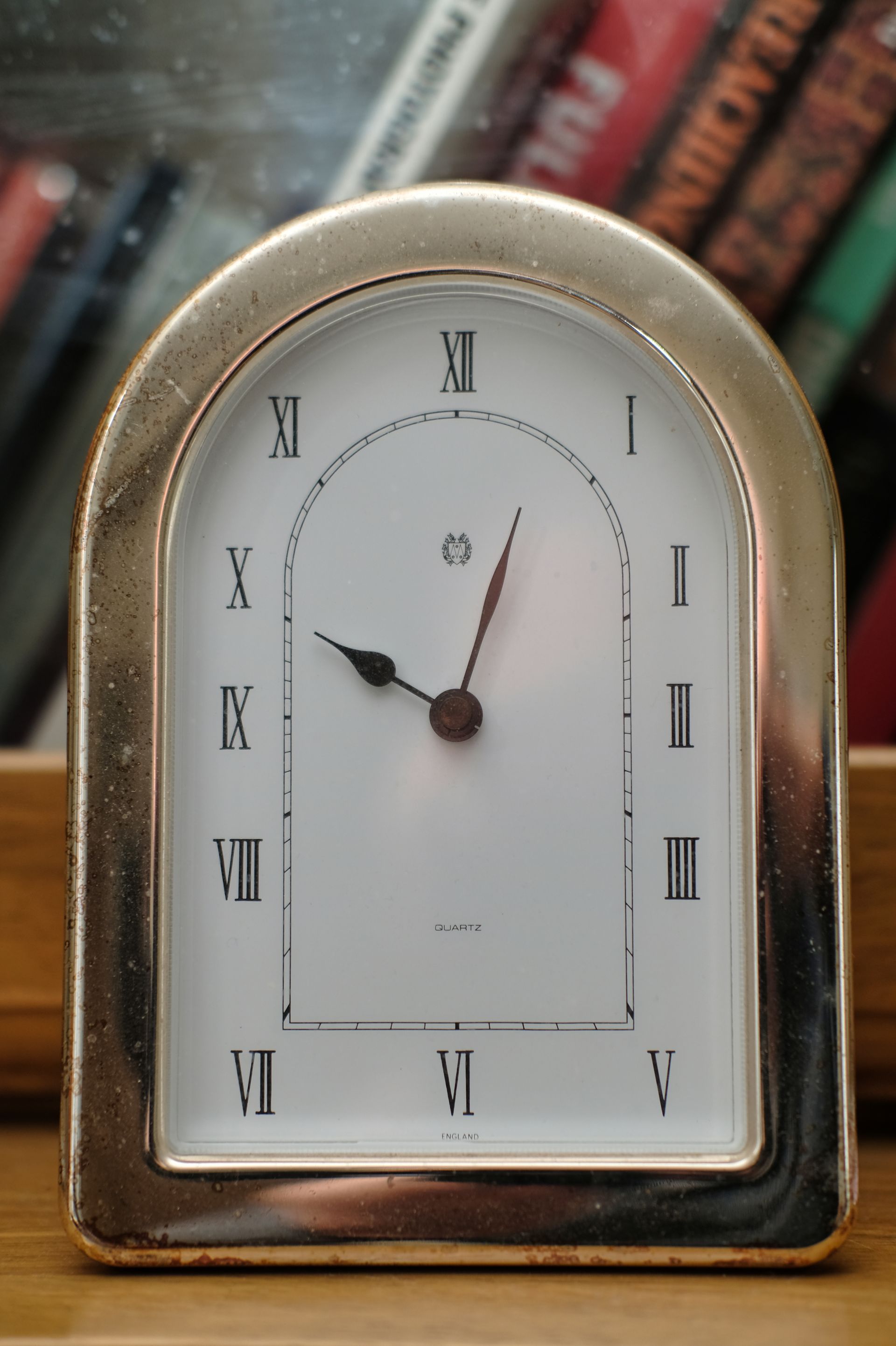

Clock 2
Photo By: Derek Smith

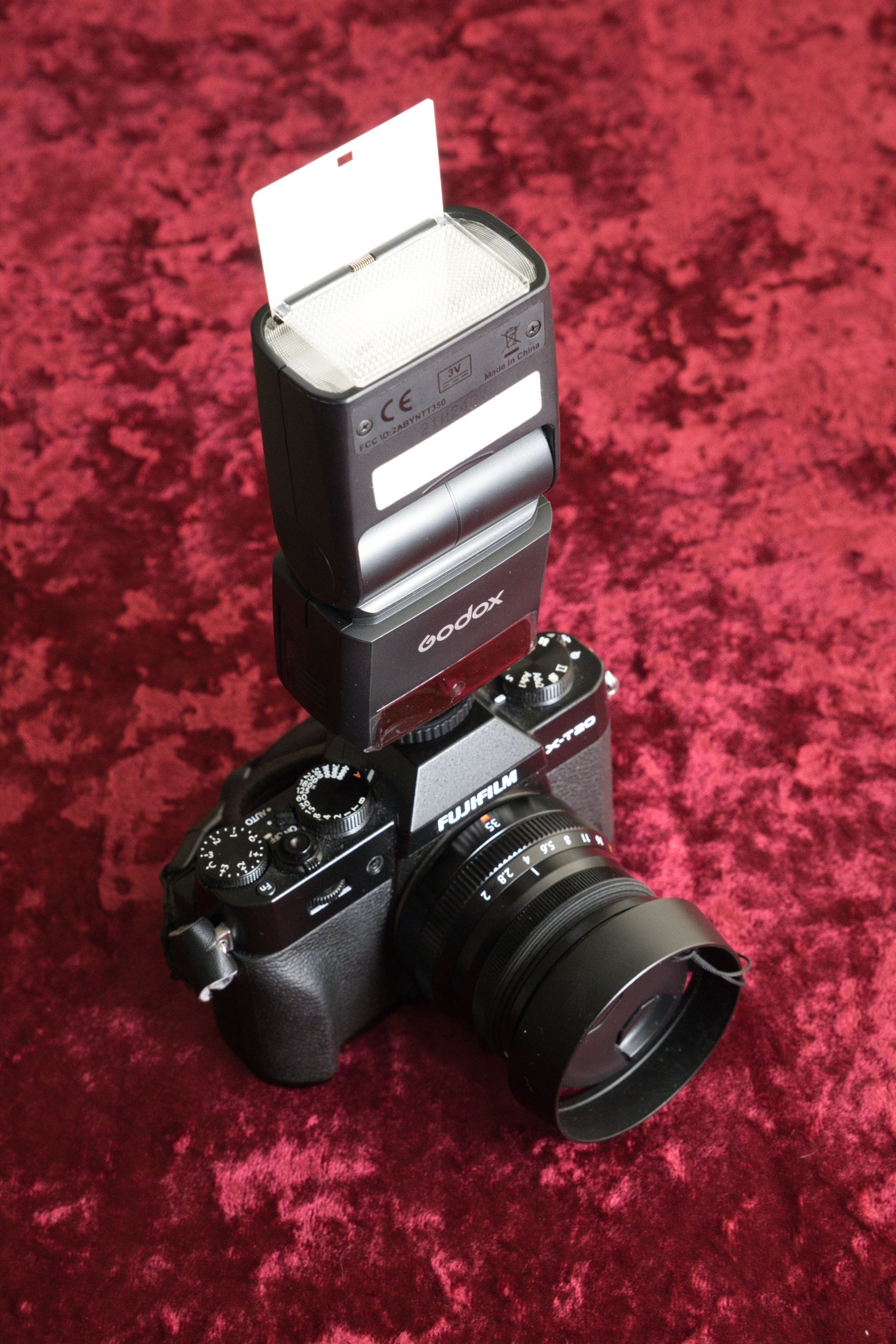

Bounce Card
Photo By: Derek Smith
We all know that light is an essential element of a photograph, and when light levels are low, adding flash lighting can be an aid to a successful image, permitting higher shutter speeds, and lower ISO settings.
Managing light from flash can at times be problematic, photographers can very well struggle with camera settings, and managing the power output of the flash unit.
In a studio environment where a subject is relatively static, an off-camera flash unit in a large soft box, mounted on a stand, can be positioned above, and slightly in front of the subject, the soft box creates a soft wraparound light effect. The first task is to set the camera to shoot in “Manual”, choose the lowest ISO setting (usually 100, 160, or 200 depending on camera). Then adjust the aperture to a mid-range value, personally I find that f/8 suits my camera and lenses. The final camera step is to adjust the shutter speed to remove any ambient light in the room, a test shot taken in this way should show a black screen, the lighting will be supplied by the flash unit only. Once the camera is set to the optimum settings, DO NOT adjust anything on the camera, all that remains is to switch the flash unit on, and adjust the power output until the test shots give the correct exposure, I suggest starting at perhaps 1/8 power, then adjust the power up or down until the exposure looks correct on the test shots. The image of the model Angel demonstrates what can be achieved.
In a more dynamic photographic environment such as a wedding, a social event, party, or a family gathering in a house, where the subject(s) can be moving around a flash unit on a stand is simply not a practical solution. On-camera flash can be your saviour in this situation but can be more difficult to control the light from the flash, the biggest pitfall is the unflattering “deer in the headlights” lighting effect where the power of the uncontrolled flash gives a very defined overexposed image.
As an example, look at these two images of a clock, both are taken at the same camera settings, shutter speed 1/180 (camera flash sync speed for the Fuji X-T20), ISO f/2, and ISO 200, and with the flash set for TTL, the first very obviously shows evidence of the use of flash with blown-out highlights, the second image has more controlled lighting. What then has changed? The camera settings are exactly the same, the distance from the subject remains the same, and I used the same Fuji XF 35mm prime lens in both instances, the difference then is that instead of pointing the flash head directly at the subject, I have swiveled the speedlight flash head around to point up at the ceiling, the light bounces off the white painted ceiling and gives that softer light on the clock. This technique of bouncing the light, can also work by swiveling the speedlight head to a nearby wall, or any reflective surface. One drawback of this method is that when photographing a person, the eyes may look dark, if this is the case pop out the bounce card on the speedlight flash head which just adds a little light into the eyes to create a catchlight.
Flash lighting can also be used in daylight to photograph a person in bright sunshine against a bright sky, but this requires a different technique, known as High Speed Sync (HSS). Assume for a moment that you would like to take a portrait at an aperture at f/1.8, for subject isolation, and a blurred background, setting the exposure for the ambient light of the sky leaves the subject looking underexposed, now if you have a camera, and flash unit compatible for using HSS, the shutter speed can be raised from the standard flash sync speed (varies by camera body / manufacturer 1/60 – 1/250) to something like 1/4000, maintaining the ambient light of the sky, with the flash correctly lighting your subject, a couple of test shots will need to be taken to assess how much flash power is needed to correctly expose the subject.
Tips on buying a hot shoe mounted flash speedlight – ensure the light is compatible for your camera make / model, a swivel head provides more options, as does a “bounce card”, and some cheaper models may not have the option of High Speed Sync.
