Know Your Digital Camera Sensor
Paul Malley • 20 December 2022
The advances in Sensor technology, coupled to the vast internal micro-processor image library means that good jpeg images are frequently obtained with minimum extra Photographer's input. However, as Photographers, we try to get the best possible image, and this starts by optimising the image taking stage in the camera. My camera offers raw at a 14bit file, giving a maximum of 16.383 tones on a 30.2Mp Sensor; however, as the Sensor histogram is split into 5 equal vertical columns (see images above), these 16,383 tones ARE NOT split equally amongst them all (i.e. they do not encompass 3,277 tones in each of the 5 columns).
STICK WITH ME HERE...
Instead, the right-most fifth (the highlights) accounts for 8,192 different captured tones (that's half of the total in just one column). Moving towards the left, the next fifth represents 4,096, followed by 2,048 levels,1042 levels, and, in the left most Section where the deepest shadows reside, only 512 different tones are captured. When processing my raw files, there are only 512 tones to recover in the shadows (compared to the whopping 8,192 in the highlights), which is why boosting / amplifying them as you raise the ISO increases noise.
HOPE YOUR'E STILL AWAKE...

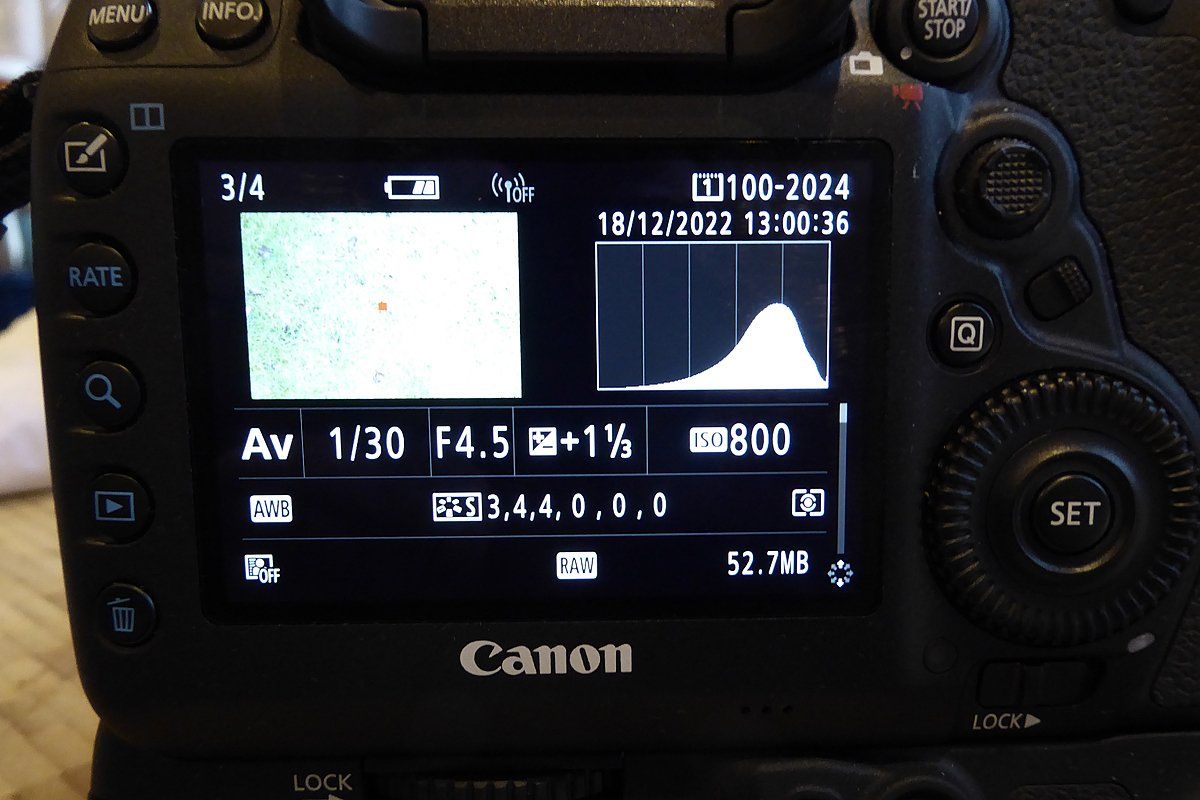

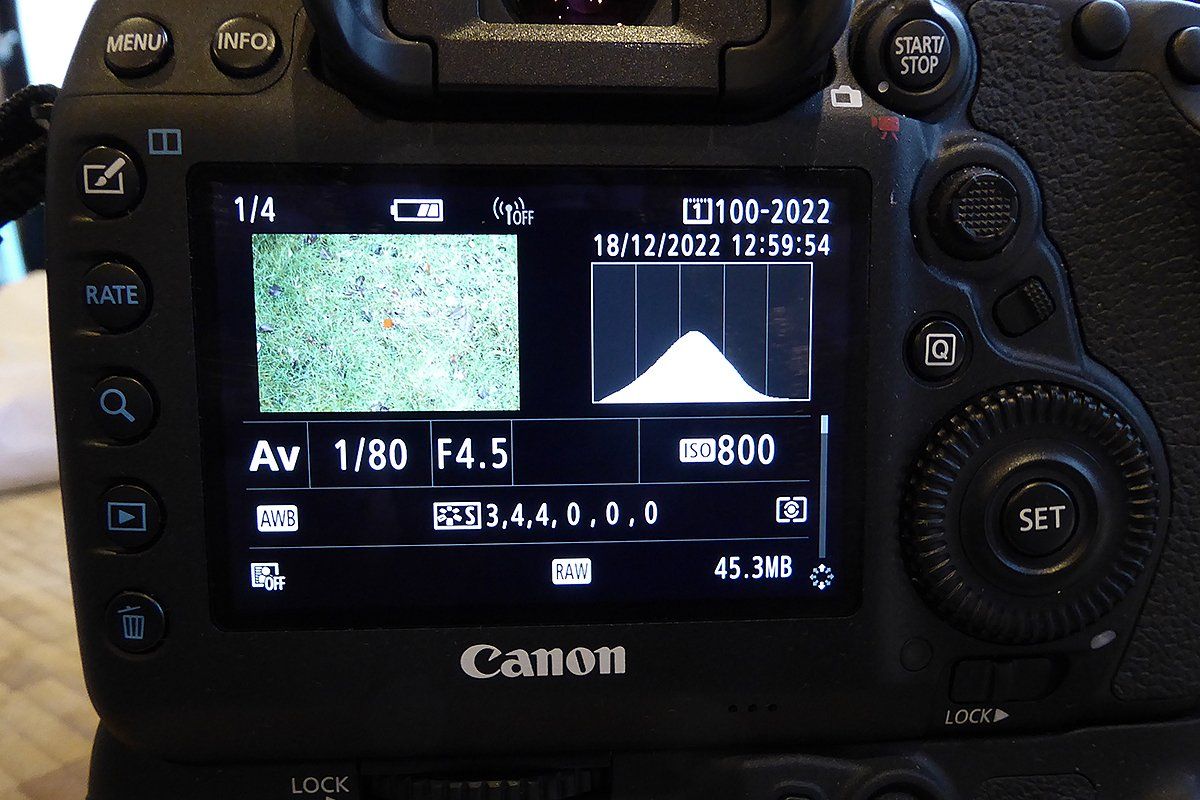

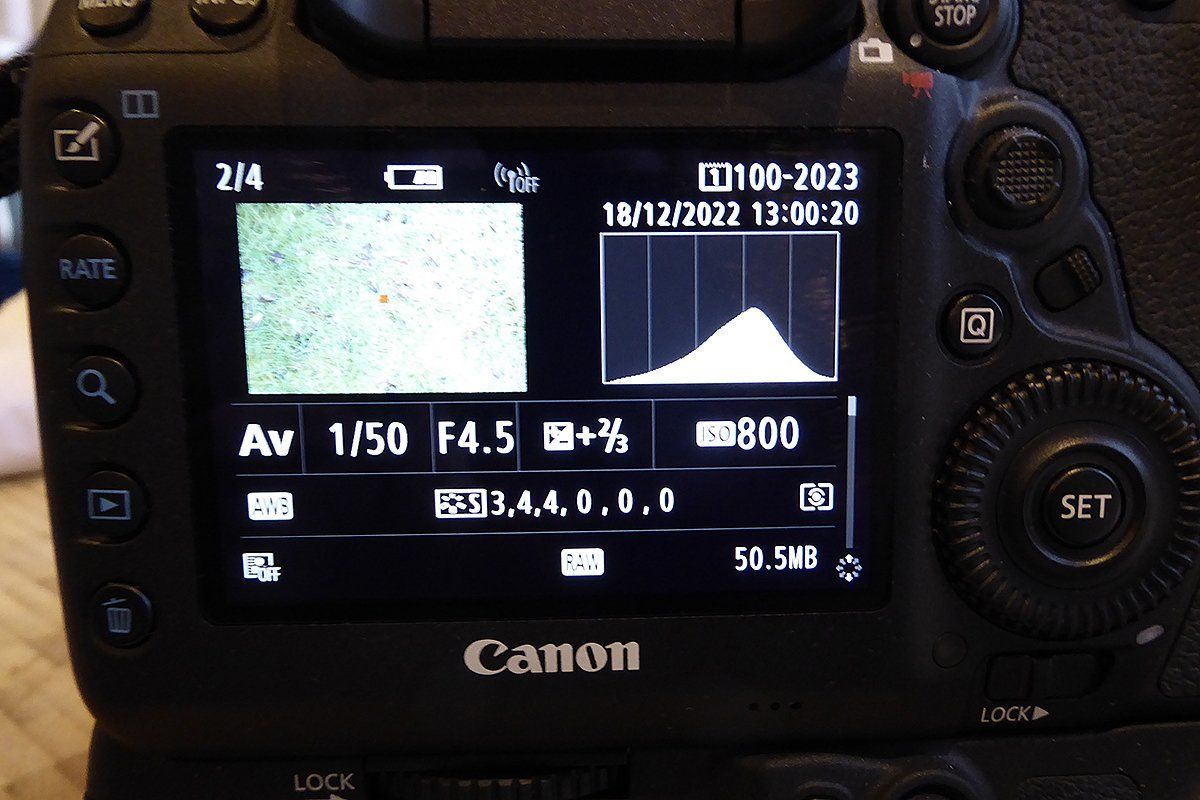

Rather than accept the standard metered exposure in raw, I add exposure (as shown in the metered 2 and 3 image) - as long as the highlights are not pushed off the edge of the histogram (a term known as 'clipping'). This allows me to use my raw convertor program (either Canon DPP, or the Adobe raw) to bring back the surplus of tones in the highlights, without detriment to having to increase the shadows and potentially introduce noise. It has to be said, that when using this method, my initial raw files look over-exposed, but careful monitoring of the histogram and exposing to the right without highlight clipping ensures a full capture of the tones, with confidence that the shadows are not blocked or introducing noise in post manipulation. The distribution curve of the histogram allows full recovery of the highlights, as they are not 'burnt-out'. The more I work with my histogram, the more useful I find it. This feature is one of a number of useful histogram functions, alongside Bayer Array testing, Colour Balance (RGB) monitoring and use of exposure compensation. It is noticeable in manual mode where, as the Photographer I control the inputs, especially, where subjects permit, turning auto-ISO off.
