Deciphering Lens Markings
Derek Smith • 4 October 2020
Olympus Lens
Photo By: Derek Smith
Olympus Lens 2
Photo By: Derek Smith
Deciphering Camera Lens Markings
All of our camera lenses have engraved markings on them to help us in understanding the properties of the lens.
So, let's go through some of the most common markings.

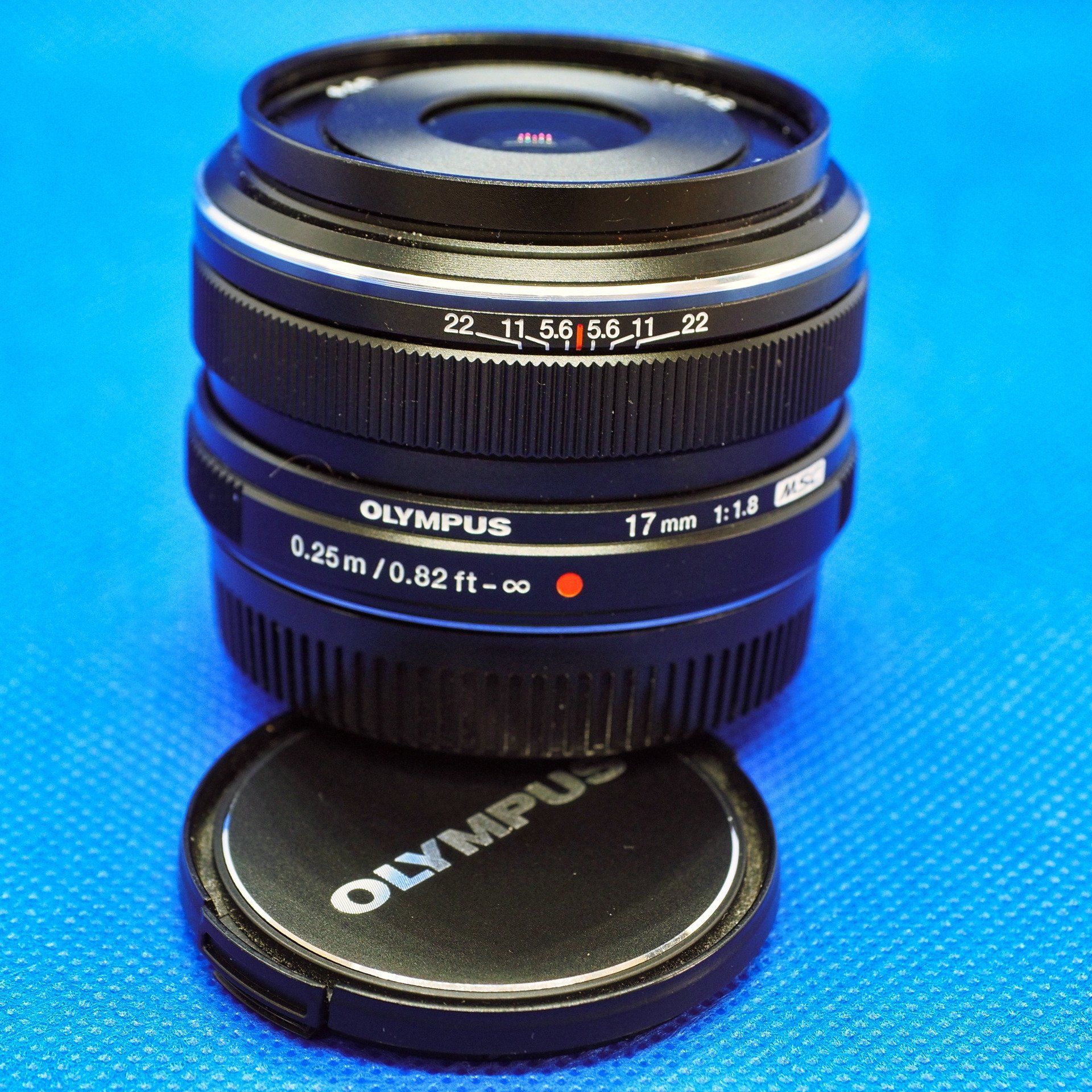

Widest Aperture - Typically shown as a ratio 1:1.8, for a f/1.8 prime lens, or a constant aperture zoom lens. 1:3.5 -5.6, for a zoom lens with a widest aperture of f/3.5 at the shortest focal length, and f/5.6 at the longest focal length.
Focal Length - This lens is an Olympus, "Micro Four Thirds" system lens, with a focal length of 17mm, which owing to the crop factor of x2 would give an effective viewing angle of 34mm on a full frame camera. A typical full frame "standard" zoom lens would be marked on the lens as; 24-70mm to indicate the focal length range.
Closest Focusing Distance - This is shown in metres, and feet to infinity. Remember this is NOT from the front element of the lens, but from the sensor focal plane, which is where the film used to be. The sensor focal plane is marked on the top of the camera by a datum mark, which is a circle with a horizontal bar through it.

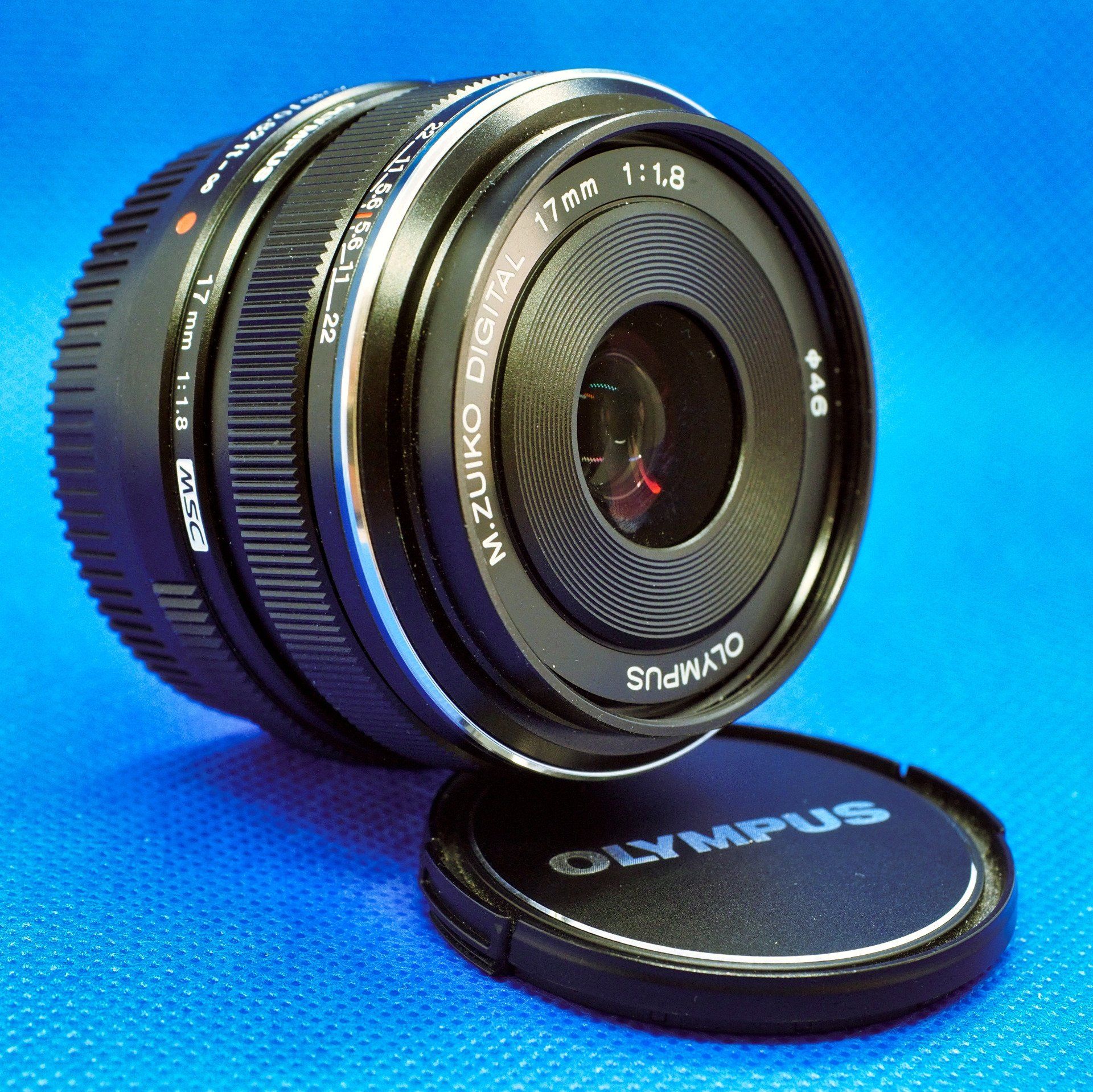

Front of Lens Diameter - This is the internal threaded front of the lens, indicated with a circle with a 45 degree bar through it, ie; Ø52mm, this is the size for your lens cap, or a circular filter. I once bought a Ø46mm circular polarised filter, for which I wrote a review on a certain large online retailer site, and ever since I've been plagued with potential customers asking "will this fit my Canon, Nikon, Sony, Fuji, Panasonic lens?", I just have to tell them to look for the lens diameter marking.
Other Markings - Naturally the lens manufacturers name, and sometimes a few abbreviations, this Olympus lens has "MSC", Movie, Stills, Coatings to control flare. Sony has "OSS", Optical Steady Shot, for a stabilised lens. Nikon has "VR", Vibration Reduction, for their stabilised lenses. Canon has different designations for their lens focusing motors, "USM", for Ultra Sonic Motor, "STM", for the silent Stepper Motor for silent video shooting.
